How to use a smartphone to detect Norovirus...
University of Arizona researchers have struck a balance between sensitivity and affordability, with a new method for identifying Norovirus - and you do not have to be a scientist or an engineer to run the device; analysis will be achieved automatically by a smartphone app, so all you have to worry about is loading a sample of water onto the chip.
A little bit of Norovirus - the highly infectious microbe that causes millions of cases of food poisoning and about 200,000 deaths globally each year - goes a long way. Just 10 particles of the virus can cause illness in humans. The researchers have created a simple, portable and inexpensive method for detecting extremely low levels of Norovirus.
"Advances in rapid monitoring of human viruses in water are essential for protecting public health," says Kelly Reynolds, chair of the department of community, environment and policy in the Mel & Enid Zuckerman College of Public Health, and one of the project's leaders. "This rapid, low-cost water quality monitoring technology could be a transformational tool for reducing both local and global disease burdens."
The National Science Foundation Water and Environmental Technology Center at the UA and Tucson Water both provided funding for this research. While Norovirus is often associated with cruise ships, it can also spread quickly through a community via its water supply.
Devices to detect Norovirus in small quantities do already exist, but they typically require a laboratory setting with an array of expensive microscopes, lasers and spectrometers. To detect Norovirus in the field, such as on cruise ships or in municipal water wells, the team decided to use much simpler materials: paper, in the form of microfluidic chips, and a smartphone.
Soo Chung, a biosystems engineering doctoral student who works in fellow researcher Jeong-Yeol Yoon's Biosensors Lab, explains: "Paper substrate is very cheap and easy to store, and we can fabricate these chips easily. The fibrous structure of paper also allows liquid to flow spontaneously without using the pumping systems other chips, such as silicon chips, usually require."
However, scientists usually detect contaminants on the chips by measuring the scattering and reflection of light in a sample, and paper's porousness and opacity can cause background scattering that interferes with imaging and makes it difficult to detect very small concentrations of a virus. So, the group developed a new way to detect Norovirus, by counting fluorescent beads rather than measuring light intensity.
The process starts with adding potentially contaminated water to one end of a paper microfluidic chip. To the other end, a tester adds tiny, fluorescent polystyrene beads (picture the little white balls inside of a bean bag - these are the same material, but much smaller). Each bead is attached to an antibody against Norovirus. If Norovirus is present, several of the antibodies attach to each virus particle, creating a little clump of fluorescent beads.
Jeong-Yeol Yoon explains how this works: "Norovirus particles are too small to be imaged by a smartphone microscope, and so are antibodies. But when you have two or three or more of these beads joined together, that indicates that the Norovirus is there, causing the beads to aggregate."

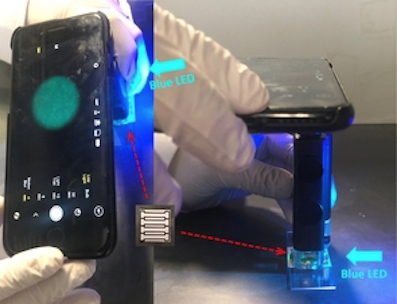

These clumps of beads are large enough for a smartphone microscope to detect and photograph. Then, a smartphone app the researchers created counts the number of illuminated pixels in the image to identify the number of aggregated beads, and subsequently, the number of Norovirus particles in the sample. That's another advantage of the paper chip: Through capillary action, the groups of beads spread out along the paper, making them easier to count. The most expensive component of the whole device - the smartphone microscope - costs less than US$50. It is also simple to use.
"You don't have to be a scientist or an engineer to run the device," he says. "Analysis will be done automatically by the smartphone app, so all you have to worry about is loading a sample of water onto the chip."
In the future, the team hopes to develop methods for detecting Norovirus infections in patients even earlier, and to expand the smartphone monitoring platform to detect other hazards, such as potentially cancer-causing chemicals. The team also plans to spread the platform's use across the globe, fighting and detecting far-reaching diseases with tools that are just as widespread.
The team published its results in ACS Omega, the official journal of the American Chemical Society, and Jeong-Yeol Yoon is presented the research at the ACS Fall 2019 National Meeting & Exposition in San Diego.
Other co-authors on the paper include graduate research associate Christina Morrison and assistant research professor Walter Betancourt of the UA Water & Energy Sustainable Technology Center; Lane Breshears, former biomedical engineering undergraduate student researcher; and Sean Perea, a recent graduate of the Department of Chemical and Environmental Engineering.
29th August 2019
